External
Length: 3.05 m (10 ft)
Width: 2.44 m (8 ft)
Height: 2.59 m (8 ft 6 in)

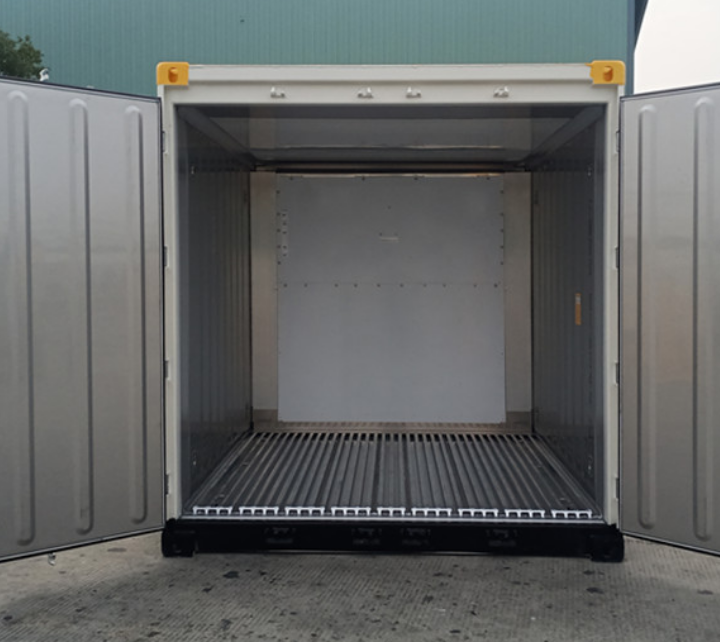

Internal
Length: 2.40–2.50 m
Width: 2.29 m
Height: 2.27 m
Door opening
Width: ~2.29 m
Height: ~2.26 m
⚖️ Weight & Capacity
Tare weight: ~2,800–3,200 kg
Max gross weight: ~10,000–12,000 kg
Max payload: ~6,800–8,000 kg
Internal volume: ~13–15 m³
❄️ Temperature Control
Temperature range:
–25 °C to +25 °C (some units down to –30 °C)
Control accuracy: ±0.5 °C

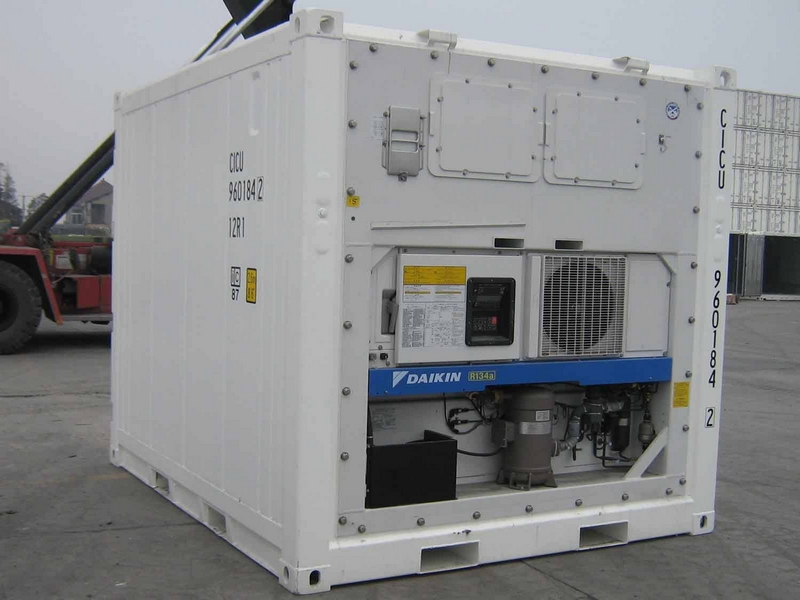

Refrigeration unit brands: Carrier, Thermo King, Daikin
Airflow: Forced-air circulation (T-bar aluminum floor)
🔌 Electrical
Power supply:
380–460V / 3-phase / 50–60 Hz (standard)
Some units available with 230V single-phase
Power consumption: ~4–7 kW (depends on set temp & ambient)
Plug type: IEC 60309 (reefer plug)
